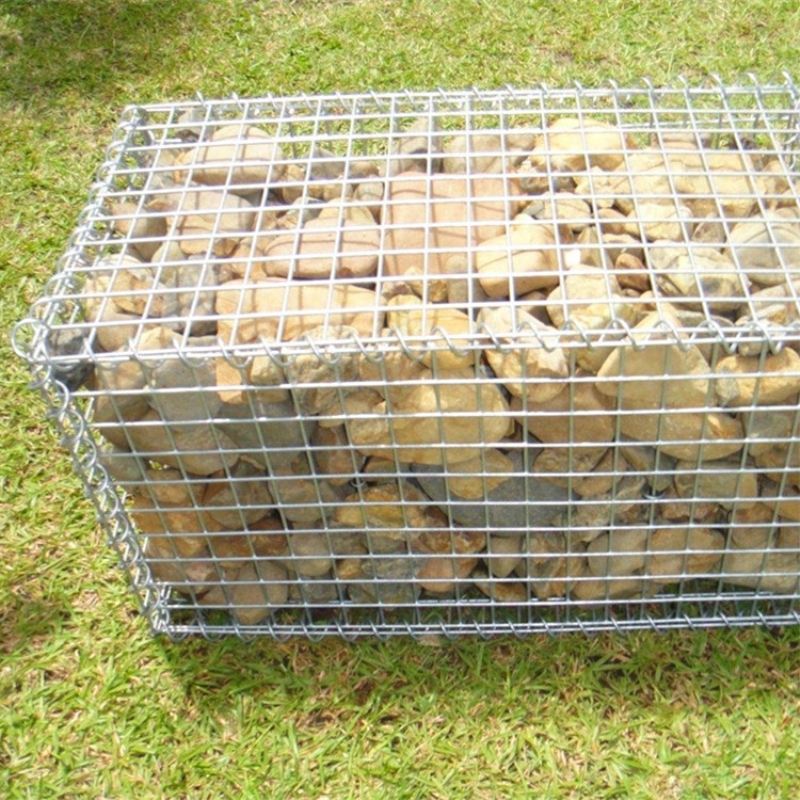

Welded mesh gabions basket&box

Welded Wire Mesh Panel Gabions/gabion box & basket



Our gabion stone basket can be field cut to fit curves, culverts, or angles.Unlike competitor's gabions, ours utilize wire stiffeners at all exterior corners of the structure. This reinforces the sides to avoid bulging and also creates a larger opening for easy backfill.


Inquire Now Next Product

Share

Product Details

Welded Wire Mesh Panel Gabions/gabion box & basket



Our gabion stone basket can be field cut to fit curves, culverts, or angles.Unlike competitor's gabions, ours utilize wire stiffeners at all exterior corners of the structure. This reinforces the sides to avoid bulging and also creates a larger opening for easy backfill.

The wire gage and length of the welded wire soil reinforcement mats will vary as required for each specific site.


Welded mesh gabions for river control


Welded Gabion specifications
Wire diameter:3.0-6.0mm
Size MMesh size MMDiaphragmsNo.CBM
1.0*1.0*0.5    50*50 75*75 50*100 100*10000.5
1.0*1.0*1.001.0
1.5*1.0*0.500.75
1.5*1.0*1.001.5
2.0*1.0*0.511.0
2.0*1.0*1.012.0
3.0*1.0*0.521.5
3.0*1.0*1.023.0
4.0*1.0*0.532.0
4.0*1.0*1.034.0
The specifications can be customized.


Install

1) Foundation preparation
The foundation on which the gabions are to be placed shall be cut or filled and graded as required. Surface irregularities, loose material, vegetation, and all foreign matter shall be removed from foundation surface area. Extra care should be taken with foundation preparations in order to ensure a level and smooth surface.聽

2) Assembly
Rotate the gabion panels into position and join the vertical edges with fasteners for gabion assembly. Where spiral fasteners are used, crimp the ends to secure the spirals in place. Where C ring type alternate fasteners are used for basket assembly, install the fasteners at a maximum spacing of 150 mm. Use the same fastening procedures to install interior diaphragms where they are required. Interior diaphragms will be required where any inside dimension exceeds 1m for gabion baskets. Diaphragms will be installed to assure that no open intervals are present that exceeds 1m.

3) Placement
Place the empty gabions on the foundation and interconnect the adjacent gabions along the top, bottom, and vertical edges using spirals or C rings.


Modular Assembly


Gabion cages can be built in a modular method by eliminating an end panel for each cage so no two panels need be connected together. The same method may also be used for successive courses including lid and base panels. Interconnect each layer of gabions to the underlying layer of gabions along the front, back, and sides.

4) Filling
Staking of the gabions may be done to maintain the established proper alignment prior to the placement of rock. Connecting lacing wire and other fasteners shall be attached during the filling operation to preserve the strength and shape of the structure.
Internal connecting cross-tile (stiffener) wires shall be placed in each unrestrained gabion cell, including gabion cells left temporarily unrestrained. In welded mesh gabions these crossties or stiffeners will be placed across the corners of the gabions providing diagonal bracing. Lacing wire or preformed wire stiffeners may be used.
The gabions shall be carefully filled with rock, ensuring alignment, avoiding bulges, and providing a compact mass that minimizes voids.
The last layer of rock shall be uniformly leveled to the top edges of the gabions. Lids shall be placed over the rock filling using only approved lid closing tools as necessary. The use of crowbars or other single point leverage bars for lid closing is prohibited due to the potential for damage to the baskets. The gabion lid shall then be secured to the sides, ends, and diaphragms with spiral binders, approved alternate fasteners, or lacing wire wrapped with alternating single and double halfhitches in the mesh openings.


Welded mesh gabions for river control

Welded mesh gabions for river control


Products show

Welded Gabions are enclosures that can be filled with any sort of inorganic material: rock, brick, or concrete debris. The gabion baskets or cages were originally wicker, but now are usually a welded mesh made of sturdy galvanized, coated, or stainless steel wire that won't bend when filled with rocks. In landscaping, gabion walls can used as feature walls, sound barriers, support for an earth wall, in custom furniture, to stabilize soil, prevent erosion, and more.


Welded mesh gabions for river control


Welded mesh gabions for river control



Application



Control and guide of flood
Prevention of rock breaking
Water and soil protection
Bridge protection
Strengthening structure of soil
Protection engineering of seaside area
Seaport engineering
Isolation walls
Protection of road


Welded mesh gabions for river control


Custom Welded Gabion Design has reinvented Gabions for more uses: building facades, bench seats, outdoor fire surrounds, fences and fence foundations, sound barriers, custom furniture, fountain and pond surrounds, mail boxes, planters, and even pillars for water taps. We can produce gabions to any size and shape to suit your projects needs.



Packing details

Packing:    In pallet or in bundle, put in wooden case or cartons,as buyer's requirement.
