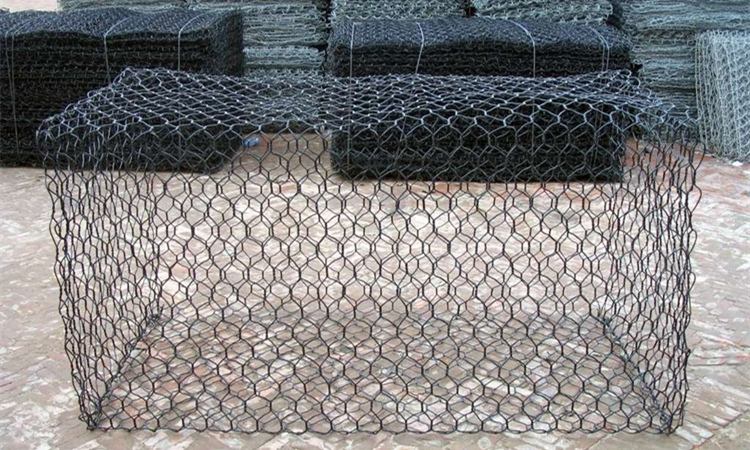

PVC coated hexagonal gabion mesh

PVC coated gabion mesh box/mattress


Plastic coated gabions box consists of a basket manufactured from heavily galvanized and polymer coated double twisted hexagonal woven steel wire mesh, PVC coated for longevity & more anti-corrosion,can be uesd more than 15 years, it's easy to installation,no special technology needed.


Material: Galvanized  Wire, PVC coated wire, Galfan wire

Hole Shape: Hexagonal

Wire Diameter: 2.0-4.0mm

Color: Green, black, bule, grey etc.


Inquire Now Next Product

Share

Product Details

Product Description


PVC Gabion stone box & Gabion mattress are wire mesh baskets to filled stone properly wired together for construction of erosion control structures and to stabilse steep slopes and prevent erosion, In order to reinforce the structure, all mesh panel edges are selvedged with a wire having a greater diameter.


PVC coated hexagonal gabion mesh


PVC coated gabion mesh box&mattress


Wire dia./mm

Mesh size /mm

Size/m

No. of diaphragms

Deviation











Inner/pvc coated



2.0/3.0



2.5/3.5



2.8/3.8



3.0/4.0















60*80



80*100



90*110



100*120



120*150

1*1*0.3

0























± 5%

1*1*0.5

0

1*1*1

0

2*1*0.3

1

2*1*0.5

1

2*1*1

1

3*1*0.3

2

3*1*0.5

2

3*1*1

2

4*1*0.3

3

4*1*0.5

3

4*1*1

3

2*0.5*0.5

1

3*1.5*0.5

2

Customized according to buyer's requirement.



Advantages:


1.Metal Gabions made of hexagonal double twisted wire mesh provide adequate strength to the structure to withstand forces generated by retained earth and flowing water.

2.The flexibility of the double twisted hexagonal mesh helps in withstanding differential settlement without fracturing the structure.

3.The Metal Gabion boxes and mattresses are more cost effective and efficient structures compared to any other rigid structures for similar function.

4.It can be installed on a plain surface, does not require more foundation preparations.

5.It does not require skilled labor due to its simple construction and assembly at site.

6.It does not require any permanent drainage system.


Applications:



Control and guide of flood

Prevention of rock breaking

Water and soil protection

Bridge protection

Strengthening structure of soil

Protection engineering of seaside area

Seaport engineering

Isolation walls

Protection of road


PVC coated hexagonal gabion mesh


We offers a vast collection of gabion baskets in different sizes, thickness and specifications.
